Modular Corridor Part 2

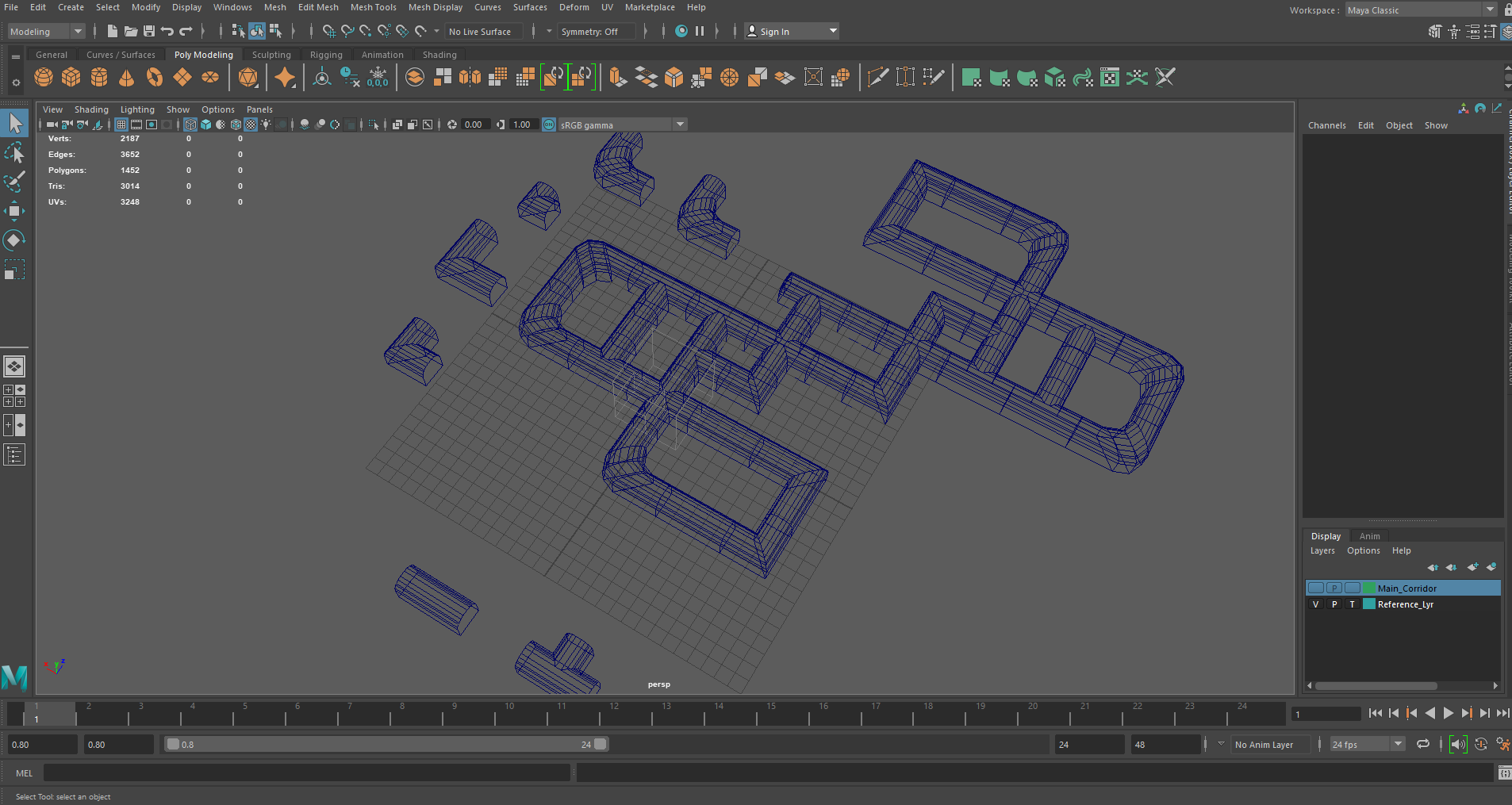

Using the pieces I made last week, I duplicated and then arranged them into a labyrinth-like structure by moving the anchor point to a corner then using snap to point to align the pieces. For the sections that didn't quite meet, I selected the vertexes of one face and snapped them to the connection point of the piece I wanted to connect to, effectively making bespoke pieces. This was very easy and relatively quick to assemble a complex structure. Using this workflow would enable me to create large spaces in a very short amount of time.

Comments

Art and Design Exercises : Decontructing Art into Basic Shapes for 3D Modeling, Glastonbury Dam

The Poäng of Art Glastonbury Dam, By Tyler Edlin, can be broken down into one large cube for the central building of the castle with another rotated and reduced for the roof. The wall is comprised of 4 cylinders with cones on top for the rooves. The tunnel section of the wall could be constructed from rectangles and cylinders using the difference boolean. For the details on the turrets themselves such as the wooden beams, I would use rectangles sunken into the surface to create the depth present in the facade. Alot of the surface detail is heavily repeated on a micro-scale and then on a macro-scale so I would probably try to create a detailed wall for example by creating the largest parts first then cut to get the tunnel, then add the rectangles to make up the supports on one small section and copy that across its breadth. Finally, I would then copy the whole thing for the other walls and make any changes that need to be made to distinguish them. using the same technique I would make t...

Affine texture mapping : Subdivide Mesh

Af fine map indeed Another bug I encountered in my previous project was when using the PSX shader on large surfaces the warping became severe which was disorientating while playing. This is because the affine mapping that the shader does to emulate the affine mapping the PS1 did, approximates the positions of vertices in screen space meaning that if the vertex in question is far off-screen the approximation becomes more inaccurate meaning that if you subdivide the meshes into smaller triangles the effect is drastically diminished.

Technical tutorial : Illustrator and Photoshop

REVENGE OF ILLUSTRATOR First I loaded an image into illustrator then using the pen tool created shapes with which to create a clipping mask. This made the image into the same shape as the panel frame. I then used Image trace to change the image to black and white as well as adding the flattening effect which bands the colours. When I came to adding the image of Godzilla I opened it in photoshop and created a clipping mask to extract only the parts I wanted. Once I had done that I saved it as a png and opened it in my comic illustrator file. Both panels only took about 1 hour combined to create, so this was a very streamed lined process. The only issue I ran into was that if you modified a file that illustrator has open such as the photo of Godzilla the program will pester you incessantly about it until you relent and let it update at which point it will change all instances of the file to the updated version. This wiped about 10 min of work I had done extracting a photo of Godzilla. I ...
